Optical Window Design — How to Select Materials for the “Eyes” of Optoelectronic Devices?

I. Window Materials: Trading Off Sapphire, Germanium, and Fused Silica

Optoelectronic devices must “see” the outside world, yet a hermetic package cannot simply have a hole in it — the answer is the optical window: seal the aperture with a transparent material so that light passes through while gases cannot get in. The three mainstream window materials each have their territory:

Sapphire— hardness second only to diamond, transmission range 0.15–5.5 μm (ultraviolet to mid-infrared), scratch- and heat-resistant. The default choice for laser packaging.

Germanium— transmission range 2–14 μm, the mainstay for mid- and far-infrared and the standard for infrared detectors and gas sensors. Opaque to visible light — to the naked eye it looks like a “black mirror.”

Fused silica— outstanding from ultraviolet to near-infrared with superb optical uniformity, ideal for precision optical measurement applications.

II. Window Configurations: Flat, Ball, and Inclined Windows

With the material chosen, next comes the structure — the window configuration determines optical performance:

Flat window— the simplest; light passes straight through without changing the optical path, used in detector packages. Xuri’s H:6.1 TO39 flat window tube shell is exactly this design.

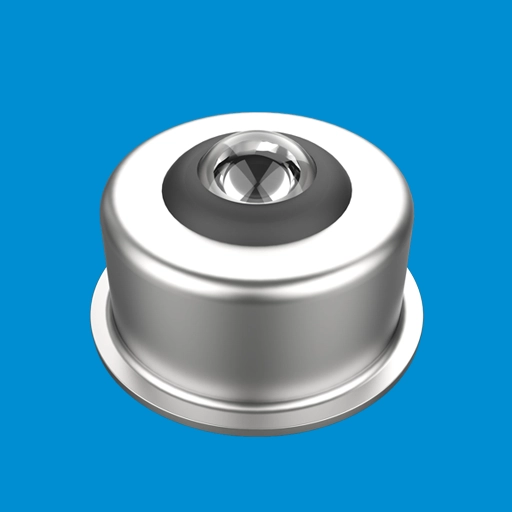

Ball window— doubles as a lens, focusing the beam and improving coupling while doing away with external lenses; a common form of TO cap. Xuri’s TO56-φ1.5 ball window cap is exactly this design.

Inclined window— the window is tilted at an angle (commonly 8°) to stop the laser from retracing its path and creating optical feedback; used for high-speed lasers. Xuri’s TO46 inclined window is exactly this design.

The window is sealed to the metal housing with the GTMS process — transmittance, hermeticity, and mechanical strength all in one; that is precisely where the technical barrier of optical window products lies.

[Next Episode] Next time: a tour of the TO package family — from TO5 to TO56, what is the story behind the dimensions?

[Glossary]

1. Sapphire: single-crystal aluminum oxide, Mohs hardness 9, transmission range 0.15–5.5 μm; the first choice for high-end optical windows

2. Germanium Window: an infrared optical material with a 2–14 μm transmission range; standard for infrared detector packaging

3. Optical Feedback: the phenomenon of laser light returning along its original path into the resonant cavity and destabilizing laser output

4. Transmittance: the ratio of transmitted light intensity to incident light intensity; the core metric of an optical window
