Metallic pressure sensor seals play a pivotal role in ensuring the accuracy and durability of these sensors, making them reliable tools for critical applications. This article delves into the significance of metal seals in pressure sensor packaging, exploring their types, advantages, and the latest trends in the industry.
Metallic pressure sensors are designed to detect and measure changes in pressure. These sensors convert the physical pressure into an electrical signal, which is then interpreted by a control system or display. The accuracy and reliability of this measurement depend heavily on the integrity of the sensor packaging, and metal seals are critical components in achieving this.
Main advantages of metal seals in pressure sensor packaging
Hermeticity: Metal seals provide a highly reliable and gas-tight seal, preventing any leaks or contamination that could affect the sensor’s accuracy and performance. This is crucial in applications where even the smallest amount of gas or liquid ingress can lead to significant errors.
Durability: Metal materials offer excellent resistance to harsh environments, including high temperatures, pressures, and chemical exposure. This ensures that the sensor remains protected and continues to function accurately even under demanding conditions.
Strength and Robustness: Metal seals are strong and durable, providing mechanical protection to the sensitive sensor components. They can withstand vibrations, shocks, and other physical stresses that could damage the sensor and compromise its accuracy.
Precision and Repeatability: Metal seals maintain their shape and sealing properties over time, ensuring consistent and repeatable measurements. This is essential for applications where accurate and reliable pressure data is crucial for safety and performance.
1. Welded Seals
Welded metal seals are created by permanently joining two metal components using welding technology. This provides a strong and hermetic seal, ideal for high-pressure and high-temperature applications. Common materials used for welded seals include stainless steel, Kovar, and Inconel.
2. Compression Seals
Compression seals rely on mechanical pressure to maintain a tight seal between two metal components. These seals are typically made from materials like brass, copper, or stainless steel and are suitable for lower-pressure applications.
3. Elastomeric Seals
Elastomeric seals use flexible materials like O-rings or gaskets to create a seal between metal components. While not as hermetic as welded or compression seals, they are cost-effective and suitable for applications with lower environmental demands.
1. Miniaturization
With the increasing demand for smaller and more compact devices, miniaturization is a key trend in pressure sensor packaging. This requires metal seals to be designed with smaller dimensions while maintaining their functionality and reliability.
2. Advanced Materials
Developments in materials science are leading to the creation of new metal alloys with enhanced properties. These materials offer improved resistance to corrosion, wear, and temperature extremes, making them suitable for even more demanding applications.
3. Customization
As pressure sensors are used in a wide range of applications, customization is becoming increasingly important. Metal seal manufacturers are offering a wider range of options for materials, shapes, and sizes to meet specific customer requirements.
Selecting the appropriate metal seal for your pressure sensor application depends on various factors, including:
Pressure Range: The seal material and design must be able to withstand the maximum pressure the sensor will encounter.
Temperature Range: The metal seal must be able to operate within the temperature range of the application without losing its sealing properties.
Chemical Environment: The seal material must be compatible with any chemicals or fluids present in the environment.
Cost: Different types of metal seals have varying cost implications, so it’s important to consider the budget.
Metallic pressure sensor seals are crucial components that ensure the accuracy, durability, and reliability of pressure sensors. Understanding the different types of metal seals and their advantages allows for the selection of the most suitable option for specific applications. By considering the latest trends and working with experienced metal seal manufacturers, businesses can ensure their pressure sensors deliver optimal performance and accuracy in critical applications.

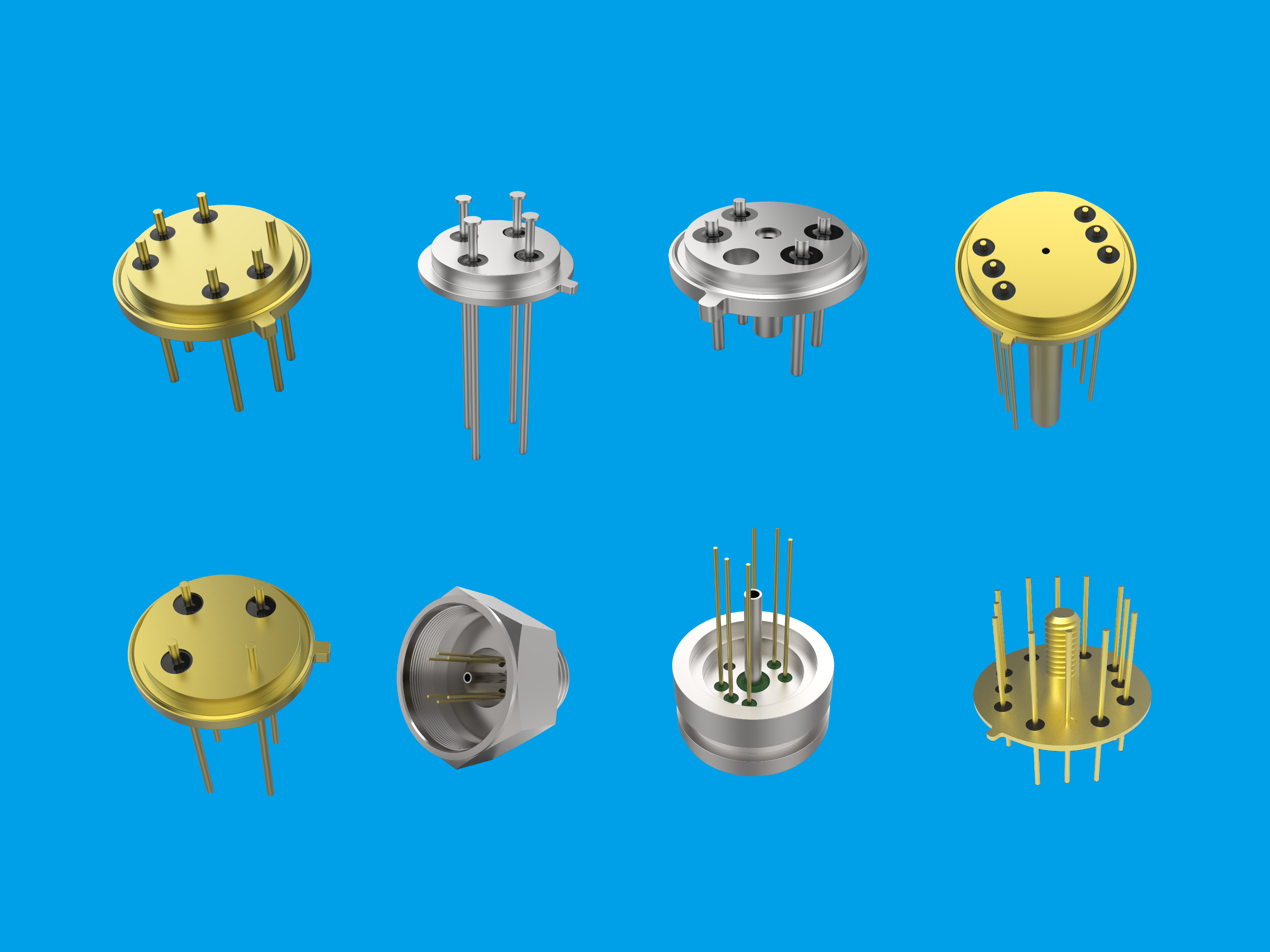

As an expert in glass metal seals, Rizhao Xuri Electronics Co., Ltd. has been designing and developing pressure sensor components for many years. With excellent production technology, advanced production processes, first-class production equipment, and comprehensive testing methods, we provide customers with complete solutions. The pressure sensor components designed by our company mainly include: TO39 series headers and caps, TO8 series headers and caps, TO5 series headers and caps, stainless steel pressure sensing core, etc. Divided into different specifications based on the number of leads. And can provide specialized customization based on customer drawings.
