Thermal Management for High-Power Devices — Three Levels of Heat-Dissipation Design

Views: 0     Author: Site Editor     Publish Time: 2026-10-23      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

I. Thermal Resistance: The “Common Currency” of Thermal Design

Temperature is the lifeline of a power device. Heat-dissipation capability is measured by thermal resistance (Rth): the temperature rise per watt of power.

Along the heat path from chip to ambient, every material layer contributes its share of thermal resistance, stacking in series. A typical path: chip → solder layer → header mounting surface → package base plate → heat sink → air. The design goal is to keep the total thermal resistance low enough — for a 20 W laser that must hold junction temperature below 85°C at a 25°C ambient, the total thermal resistance must stay under 3°C/W.

II. Three Levels of Thermal Optimization

Level 1: Material selection— the fundamental way to lower thermal resistance. Replace conductive adhesive with Au-Sn eutectic in the solder layer; choose AlN aluminum nitride over Al₂O₃ for the ceramic substrate — thermal conductivity gets a real boost.

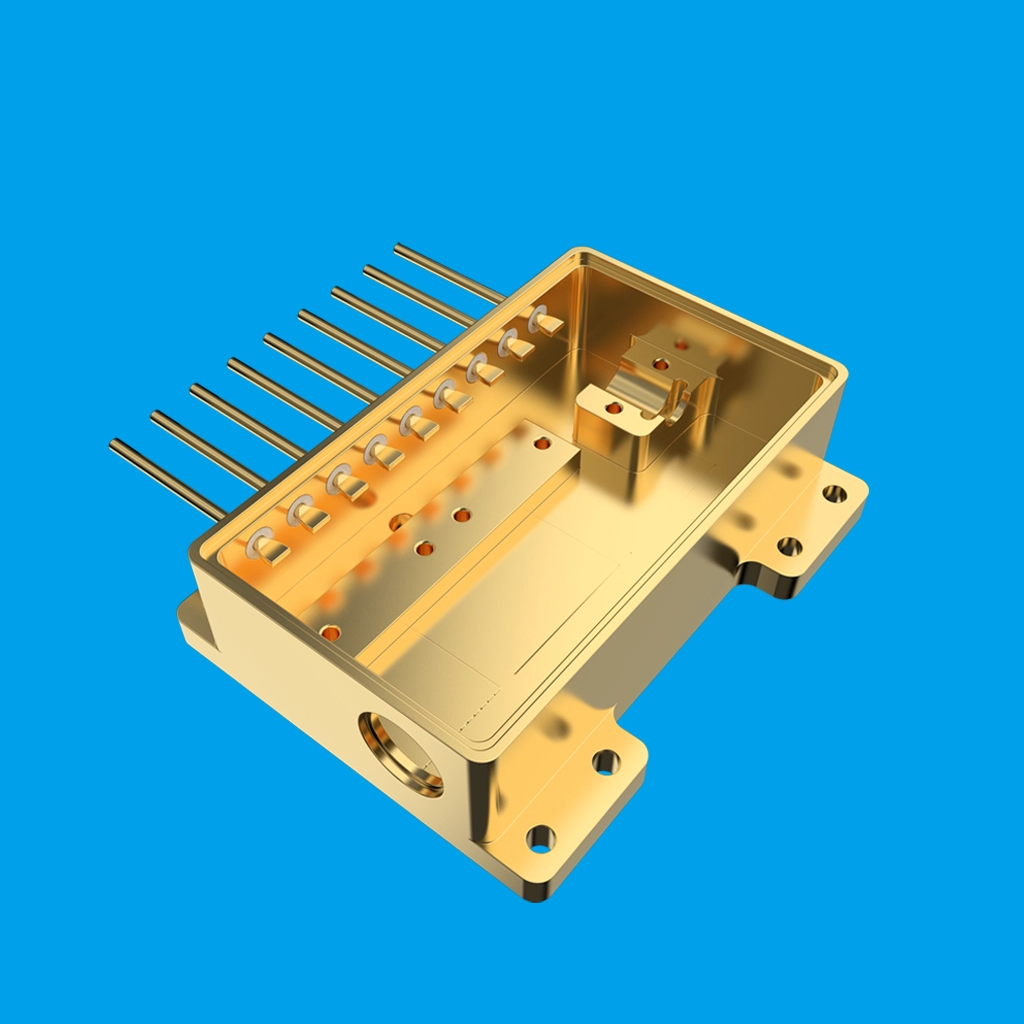

Level 2: Structural design— shorten the heat path. High-power devices mount the chip directly onto a large-area metal base — Xuri’s high-power laser housing BOX-80*48-2PIN adopts a large-area solid base-plate design so that heat reaches the external heat sink by the shortest path.

Level 3: Interface treatment— don’t let the “last mile” fail. If the thermal interface material between the package and the heat sink is unevenly applied, the interface thermal resistance can account for one-third of the total. Interface treatment is the cheapest and fastest-acting thermal optimization.

The three levels build on one another: materials set the ceiling, structure sets the path, and the interface sets the floor.



[Next Episode] Next time, the series finale — packaging failure analysis: how to find the root cause when a product fails.

[Glossary]

1. Thermal Resistance: the ratio of the temperature drop along the heat-transfer path to power, in °C/W

2. Junction Temperature: the temperature of the chip’s active region; the core parameter for device lifetime assessment

3. Aluminum Nitride (AlN): a high-thermal-conductivity ceramic at 170–200 W/m·K; the substrate of choice for high-power packaging

4. Thermal Interface Material (TIM): a material that fills the microscopic gaps between solid contact surfaces and lowers interface thermal resistance
